Smart >50A

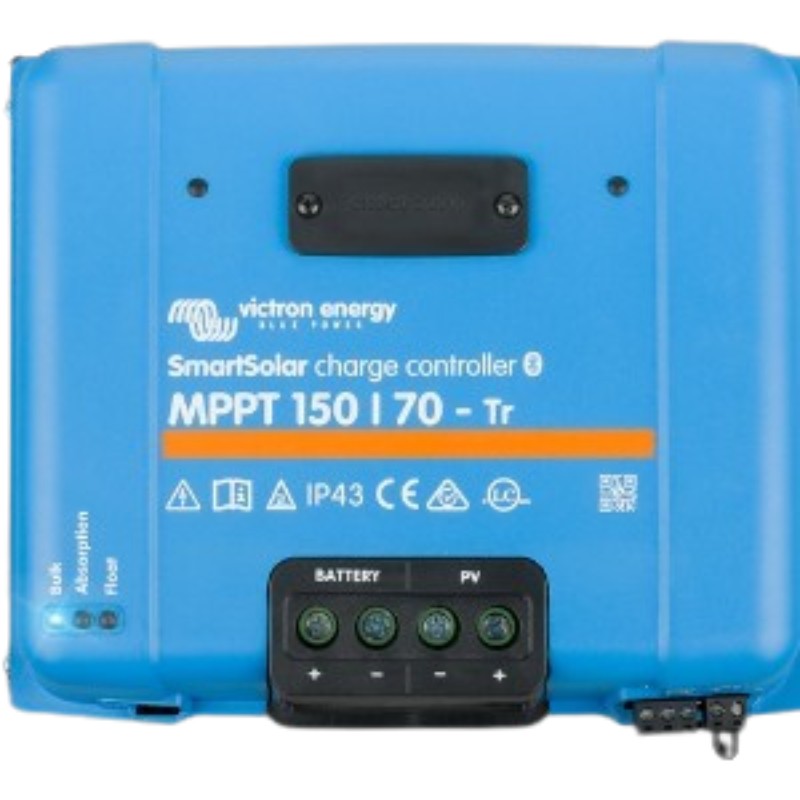

An MPPT regulator from the SmartSolar range, manufactued by Dutch company Victron Energy - one of the market leaders in solar power electronics equipment. charge controller is capable of providing significantly more power to a battery bank from the solar array, compared to conventional PWM charge controllers, in addition to maximising the battery lifespan.

The MPPT regulator is effectively a dynamic DC-DC converter which constantly adjusts and optimises the voltage output from the solar array, which can vary considerably, in order to provide a constant charging voltage for the batteries - which improves their lifespan and equates to lower power losses in the sytem.

For unbeatable performance and real-time monitoring, pair with the Victron MPPT Control unit. For additional safety and added cable protection please see WireBox L.

Features

• Ultra-fast Maximum Power Point Tracking (MPPT)
• Advanced Maximum Power Point Detection in case of partial shading conditions
• Load output on the small models
• BatteryLife: intelligent battery management by load shedding
• Automatic battery voltage recognition (12/24/48V)
• Flexible charge algorithm
• Over-temperature protection and power de-rating when temperature is high.

Specifications

• Max Open Circuit Voltage: 150V
• Max PV input at 12V: 1000W
• Max PV input at 24V: 2000W
• Max PV input at 48V: 4000W
• Max Battery Charge Current: 70A
• Dimensions: 185 x 250 x 95 mm
• Weight: 3KG
• Warranty: 5 years
• Battery Terminals: 35mm²

If you would like the SmartSolar control display, please purchase separately
