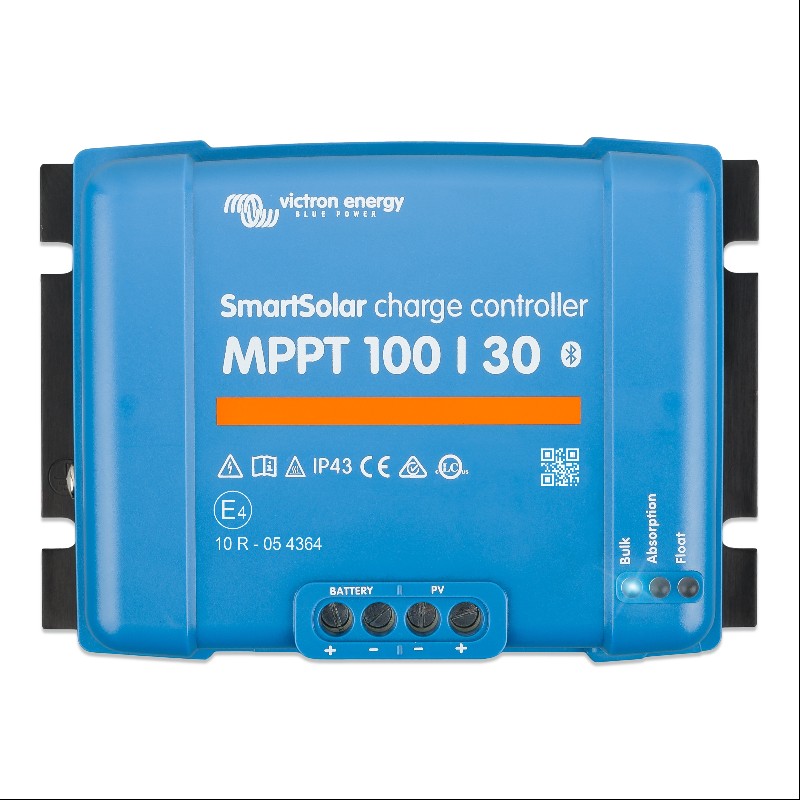

Victron SmartSolar MPPT 100/30 - TR

SmartSolar

Quantity:
Add to Cart

An MPPT regulator from the SmartSolar range, manufactured by Dutch company Victron Energy - one of the market leaders in solar power electronics equipment. This 30A MPPT charge controller is capable of providing significantly more power to a battery bank from the solar array, compared to conventional PWM charge controllers, in addition to maximising the battery lifespan.

The MPPT regulator is effectively a dynamic DC-DC converter which constantly adjusts and optimises the voltage output from the solar array, which can vary considerably, in order to provide a constant charging voltage for the batteries - which improves their lifespan and equates to lower power losses in the system.

For unbeatable performance and real-time monitoring, it has a built-in bluetooth wireless dongle.

Features

  • Ultra-fast Maximum Power Point Tracking (MPPT)
  • Advanced Maximum Power Point Detection in case of partial shading conditions
  • Load output on the small models
  • BatteryLife: intelligent battery management by load shedding
  • Automatic battery voltage recognition (12/24V)
  • Flexible charge algorithm
  • Over-temperature protection and power de-rating when temperature is high.
Electrical
Max PV Input Voltage
  100V
Rated charge current
  30A
Max PV power, 12V
  440W
Max PV power, 24V
  880W
Self-consumption
  20-30mA
System
Weight
1.3 kg
Dimensions
130 x 186 x 70mm
Product warranty
5 years
Load Terminals
No
Power Terminals
16mm2 / AWG6
