Isolators

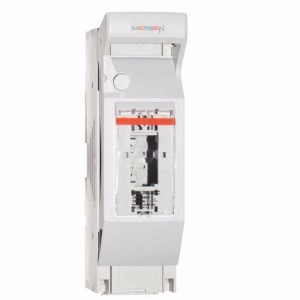

A heavy-duty fused disconnect for use with AC and DC power systems utilising NH type fuses, suitable for use between battery and inverter at 12-48VDC as well as 230VAC. Designed for bottom fitting and panel mounting. Required for off-grid MCS installations.

Supplied as a 2-pole Multibloc pair with cable shrouds and NH type fuses.

Specifications

• Current Rating: Size 160A (NH-00); Size 01 (250A)
• Max Rated Voltage: 690 VAC; 220 VDC
• Maximum Wire Thickness: 2 x 70mm² Lugs (NH-00); 150mm² Lugs (NH-01)
• Connection Terminals: M8 (NH-00); M10 (NH-01)

• Box Dimensions: 184x41x84mm (Single NH-00 Bloc); 238x71x110mm (Single NH-01 Bloc)
• Weight: 0.62kg; 2.06kg
