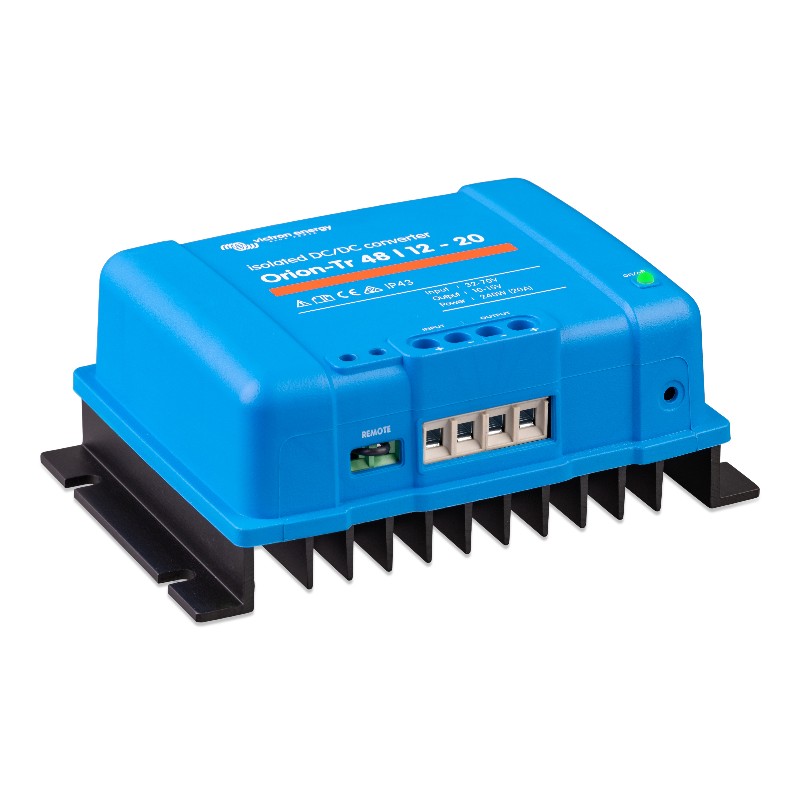

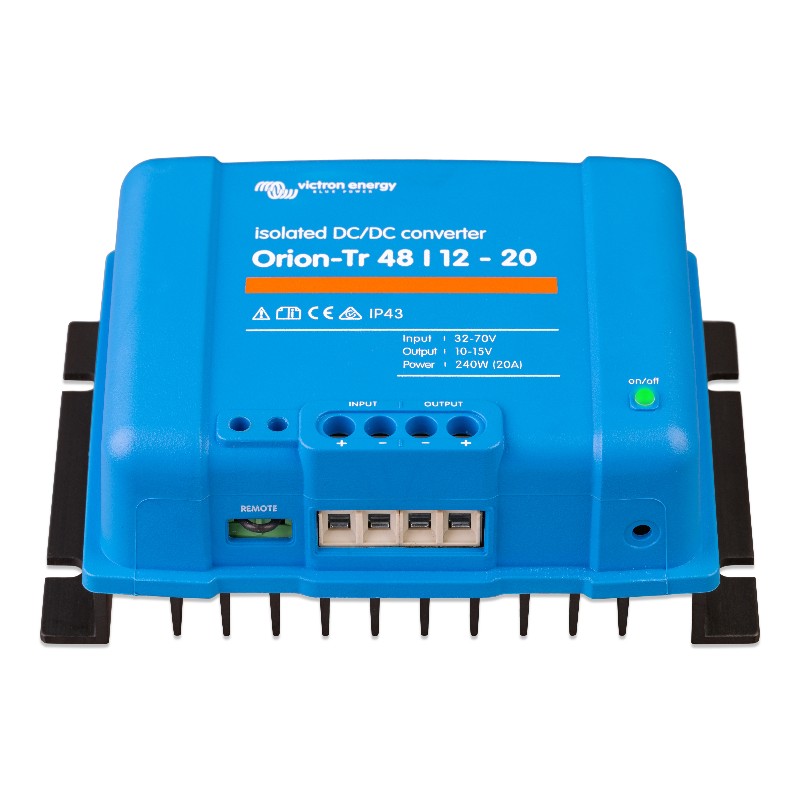

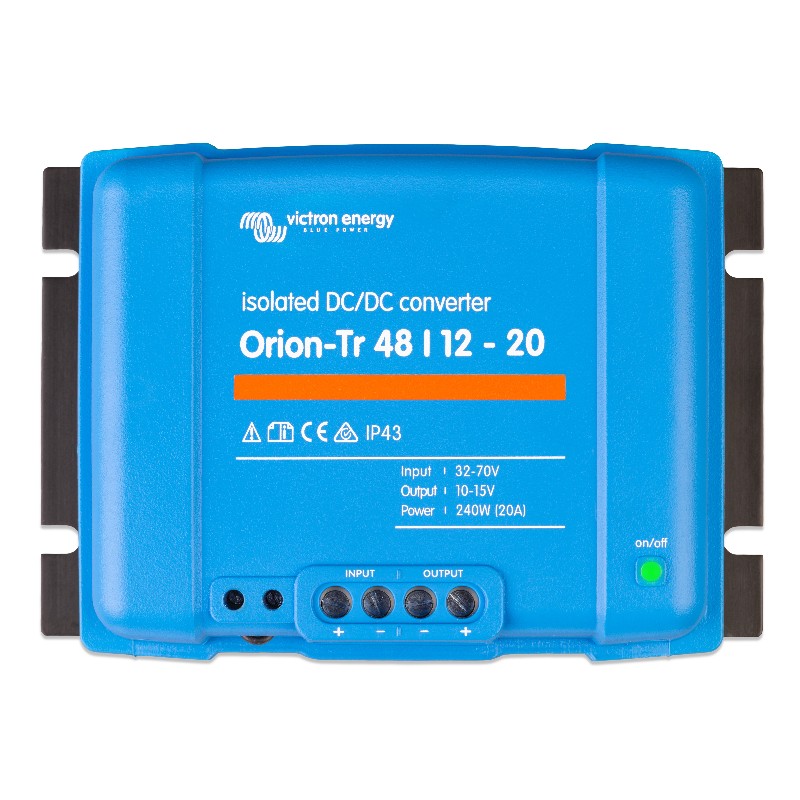

Orion-Tr-iso

A compact DC to DC voltage converter from leading European designer and manufacturer Victron Energy. This unit will step down a 48v input to a 12v output with a maximum output currents of up to 30A (360W).

Specifications:

Remote on-off - The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).

Adjustable output voltage - can also be used as a battery charger. For example to charge a 12 Volt starter or accessory battery in an otherwise 48V system.

All models are short circuit proof and can be paralleled to increase output current. An unlimited number of units can be connected in parallel.

IP43 protection - When installed with the screw terminals oriented downwards.

Screw terminals - No special tools needed for installation.

ORI481240110- Orion-Tr 48/12-30A (360W) Isolated DC-DC converter
