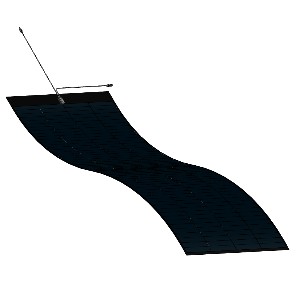

490-500Wp Miasole Peel-and-Stick Flexible Solar Panel - 5 year warranty

CIGS

£1275

Quantity:
Add to Cart

tell me more

OUT OF STOCK!! Please call for updates


With the highest power density in a flexible form factor, these 3rd Generation Miasole CIGS flexible and lightweight modules are designed for narrowboats, RVs, motorhomes and yachts.

With an unusually high energy yield due to excellent shadow tolerance and temperature stability, these panels give a good option for low narrowboat decks or hot motorhome roofs.

These panels can also be used on metal 'standing-seam' roofs to provide power to buildings, either in off-grid environments, or grid-connected ones using a suitable inverter. The incredibly low profile and discreet colour means that you will hardly even notice the panels are there, yet they will churn out power for years with no maintenance at all - a superb bit of kit!

Features:

  • Record efficiency levels - with CIGS fully flexible solar cells (>16% cell efficiency)
  • Lightweight - low installed weight at less than 2.9kg/m3
  • Full back-side adhesive tape - no requirement to bolt, ballast or drill holes
  • More Bypass Diodes - placing these between every two cells reduces PV system shading losses
  • Superior Wind resistance - low lying and sticks flush to roofs and decks

We recommend using the Victron SmartSolar MPPT Controller to gain around 15-20% more power in a 12V system.

Electrical
Peak power
490W (-0/+10%)
Vmpp
61.4V
Voc
77.2V
Impp
7.99A
Isc
9.11A
System
Weight
6.6 kg
Dimensions
2583 x 1292 x 17mm
Max System Voltage
1000V DC
Cell Type
Copper Indium Gallium Diselenide (CIGS)
Product warranty
5 years
Warranty on output
80% 25 years

  • Certifications: IEC 61646; UL 1703; UL 790 TPO - Class A over TPO 2.5:12; IEC 61730; IEC 61701 (salt spray)


The top entry junction box is fully encapsulated (IP68) and a short length of cable (1.2m) with MC4 connectors allows you to connect these together easily on your deck or roof.

N.B. These panels are built to a very high standard and faults are very rare. However, we recommend testing these panels with a multimeter prior to installation as they can be very difficult to remove if faulty.

TRADE: Bulk purchase (10+ quantity) prices available upon request.
