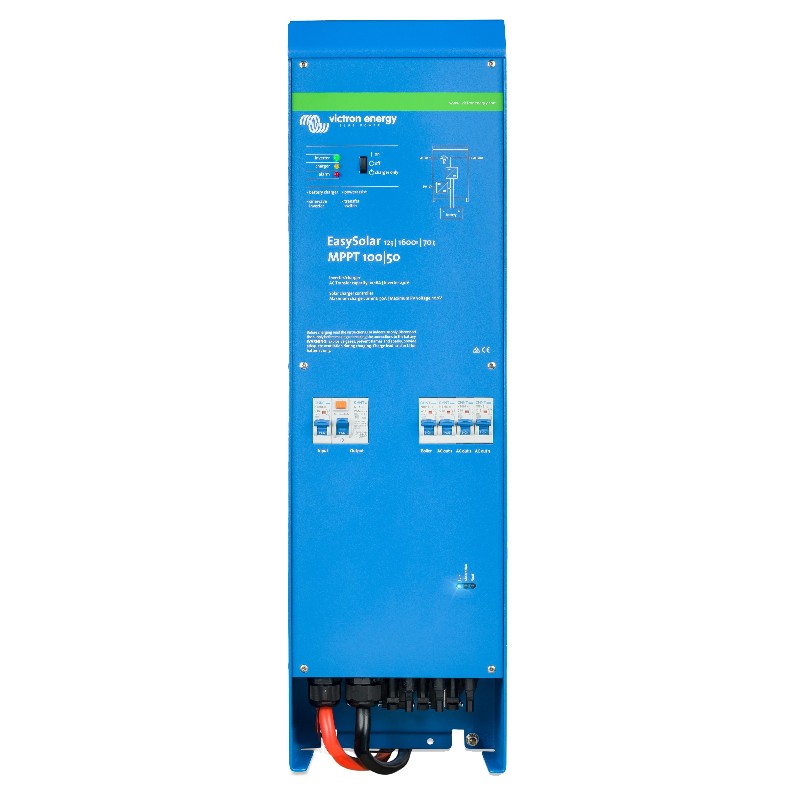

EasySolar

All-in-one solar power solution

The EasySolar combines a MPPT solar charge controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring saving you time and space.

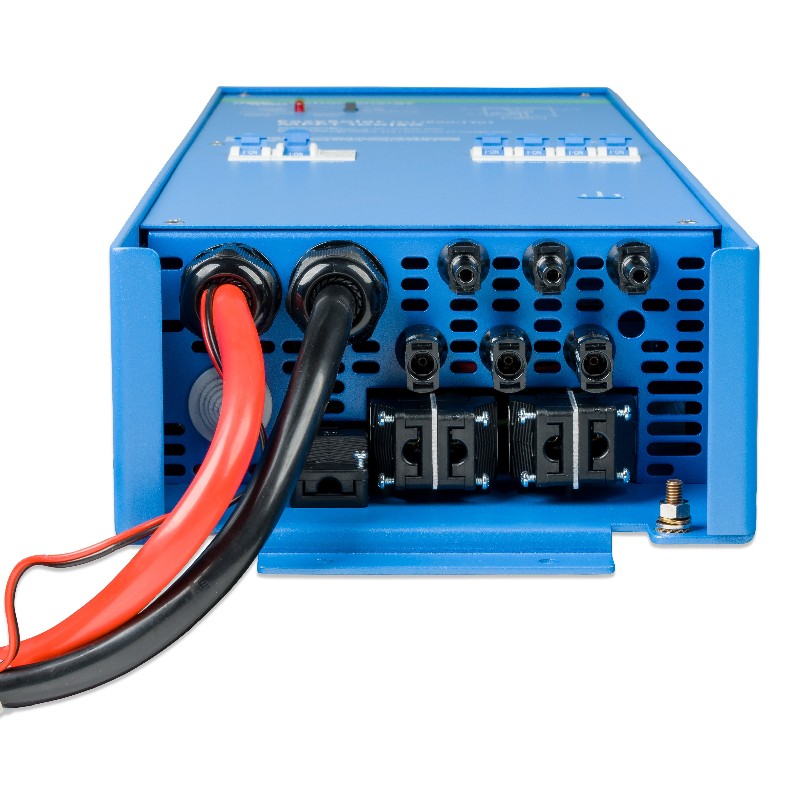

The solar charge controller: Blue Solar MPPT 100/50 Up to three strings of PV panels can be connected with three sets of MC4 PV connectors.

The MPPT charge controller and the MultiPlus Compact inverter/charger share the DC battery cables (included). The batteries can be charged with solar power (BlueSolar MPPT) and/or with AC power (inverter/charger) from the utility grid or a genset.

AC distribution The AC distribution consists of a RCD (30mA/16A) and four AC outputs protected by two 10A and two 16A circuit breakers. One 16A output is controlled by the AC input: it will switch on only when AC is available.

PowerAssist Unique PowerAssist technology protects the utility or generator supply from being overloaded by adding extra inverter power when needed.

Inverter specs:

• Input Voltage Range: 9.5-17V (12V); 19-33V (24V)
• Continuous Output Power at 25 degrees C: 1600VA/1300W
• Peak Power: 3000W
• Maximum Efficiency: 93%
• Zero-Load Power: 8-10W

Charger specs:

• AC Input: 187-265VAC 45-65HZ
• Charger Current: 70A (12V); 40A (24V)

Solar MPPT Controller

• Max PV Open Circuit Voltage: 100V
• Max PV Power: 700W (12V); 1400W (24V)
• Max Output Current: 50A

Enclosure

• Weight: 15kg
• Dimensions (h x w x d): 745 x 214 x 110 mm

Select 12V or 24V model from the drop-down menu above.
