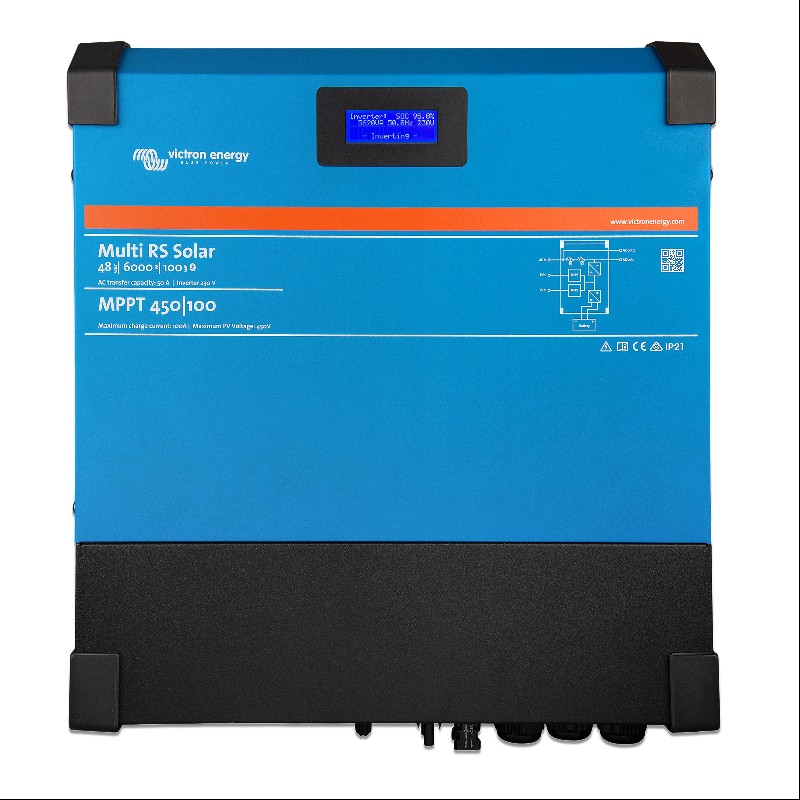

Multi RS Solar

All-in-one solar power solution - Hybrid Inverter / Charger

The Multi RS Solar 48/6000 is a 48V 6kVA Inverter/Charger with two 450VDC PV MPPT Trackers.

Thanks to high frequency technology and a new design this powerful inverter weighs only 11kg. In addition to this it has an excellent efficiency, low standby power, and a very quiet operation.

The display reads battery, inverter and solar parameters. The same parameters can be accessed with a smartphone or other Bluetooth enabled device, using the VictronConnect app.

Inverter specs:

• DC Input Voltage Range: 38-64 (48V)
• AC Output: 230VAC 50HZ
• Continuous Output Power at 25 degrees C: 6000VA/5300W
• Peak Power: 9,000W (for 3 seconds)
• Maximum Efficiency: 96.5%
• Zero-Load Power: 20W

Charger specs:

• DC Input: 36-62V
• Charger Current: 100A (48V)
• Battery Temp Sensor: Yes

Solar MPPT Controller

• Max PV Open Circuit Voltage: 450VOC
• Two Independent MPP Trackers
• Max DC Charging Power: 4000W
• Max PV short circuit current reverse polarity protection: 20A

Enclosure

• Weight: 11kg
• Dimensions (h x w x d): 425 x 440 x 125 mm
