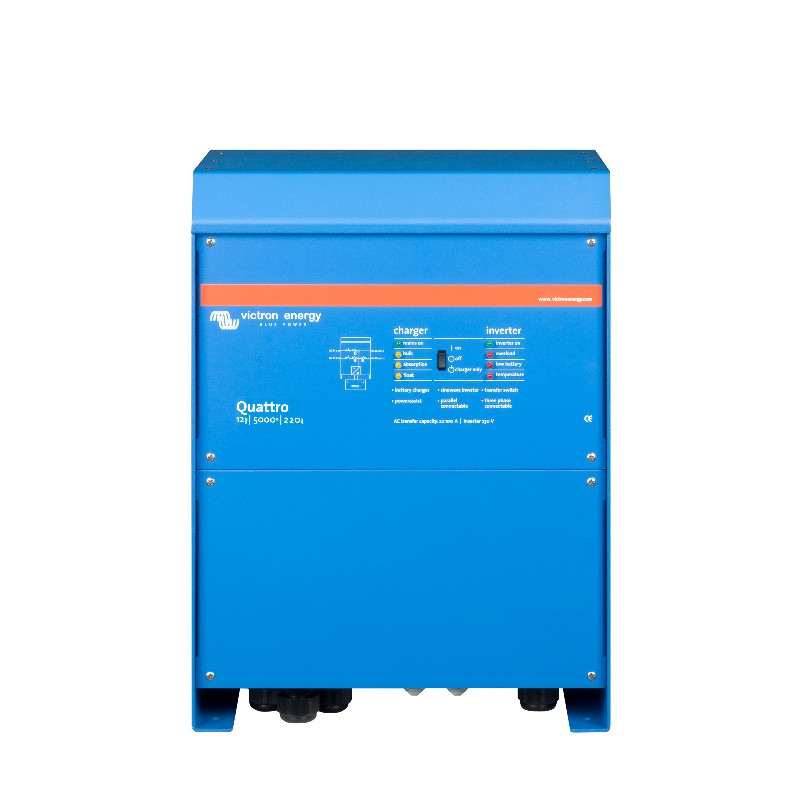

Victron Quattro 12/5000/220-100/100 230V VE.Bus

Quattro-12

Quantity:
Add to Cart

tell me more

The 5kVA Victron Quattro is a powerful true sine wave inverter, a sophisticated battery charger and a high-speed AC transfer switch in a single compact enclosure. The bigger brother of the Multiplus range, this unit is designed for industrial and commercial systems with multiple AC sources and differential loading, in addition to larger 3-phase systems.

The Quattro can take an inputs from a generator and grid supply. It can be used in conjunction with a battery bank and solar PV inverter as an energy storage system. The unit has two AC outputs, one being programmable to only operate when shore/grid power is available; designed for heavy loads such as washing machines etc.Up to 10 Quattro units can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible.

Features

  • Two AC inputs with integrated transfer switch
  • Two AC Outputs
  • Split phase option
  • Three phase capability
  • PowerControl – Dealing with limited generator, shore side or grid power
  • PowerAssist – Boosting shore or generator power

Electrical
DC Input
  9.5-17V (12V)
Continuous Output Power
  5000VA / 4000W
Peak Power
  10000W
Maximum Efficiency
  94%
Zero-Load Power
  30W
AC Input
  187-250VAC 50/60Hz
Max Charge Current
  220A (12V)
AC Transfer Relay
  2 x 100A
General
Weight
34kg
Dimensions
470 x 350 x 280mm
Product warranty
5 years
