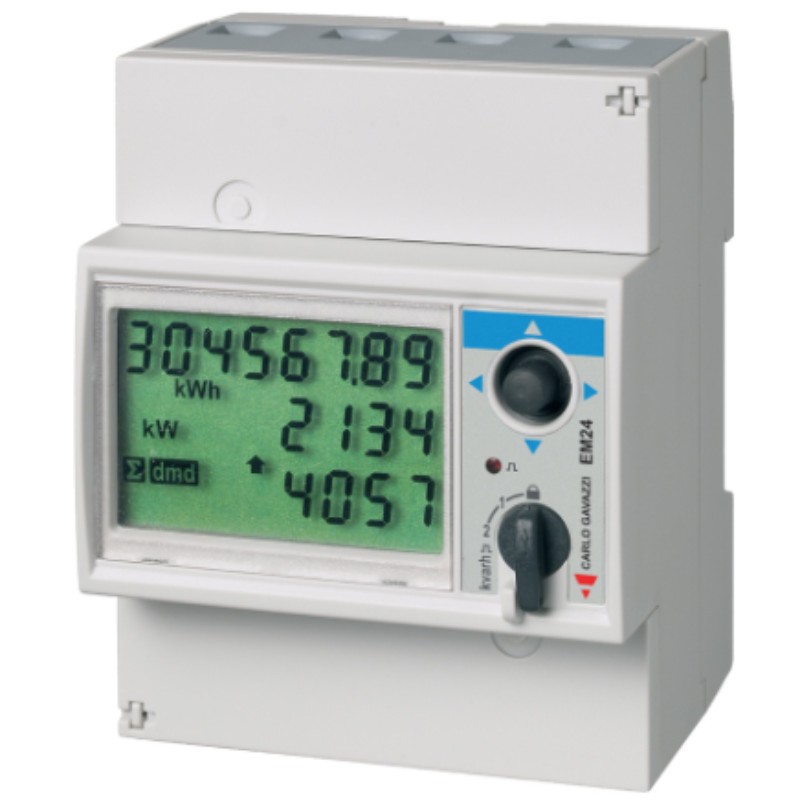

Three-phase energy analyzer for DIN-rail mounting with configuration joystick, frontal selector and LCD display. Direct connection up to 65A or via current and voltage transformers. It is equipped with Modbus TCP/IP Ethernet ports.

This unit is the CT variant and you will need additional CT clamps for it - three CT’s for three-phase and a single CT for single-phase monitoring.

The EM24 Ethernet can be configured for four different roles in a GX device such as the Cerbo GX:

1. As a Grid meter and used as control input for an ESS System.
2. To measure the output of a PV Inverter.
3. To measure the output of a AC Genset.
4. As a AC meter to measure the output of an inverter or inverter/charger.

It offers one option for connection to a GX device: a wired Ethernet connection to the local network in such a way that the GX device can reach it.

Benefits

• Time saving set-up, by frontal joystick and selector.
• Error- proof installation, by self- power supply and phase sequence detection.
• Easy variable scrolling, by means of the front joystick.
• Flexible installation, by means of the direct connection up to 65 A or the connection of 5 A current transformers.
• Accurate measurement, it is compliant with the international accuracy standard EN IEC 62053-21, and the EN IEC 61557- 12 performance requirements (active power and active energy).
