200W Perlight Delta Solar Charging Kit

200W

Log in or register for trade discounts!

Options:

Quantity:

Add to Cart

This 200W Midsummer monocrystalline solar charging kit is suitable for small to medium off-grid installations. In motorhomes, caravans and liveaboard boats, it should be capable of keeping a 12V battery charged with minimal-medium usage (such as LED lights; small TV; water pump; phone/tablet charging).

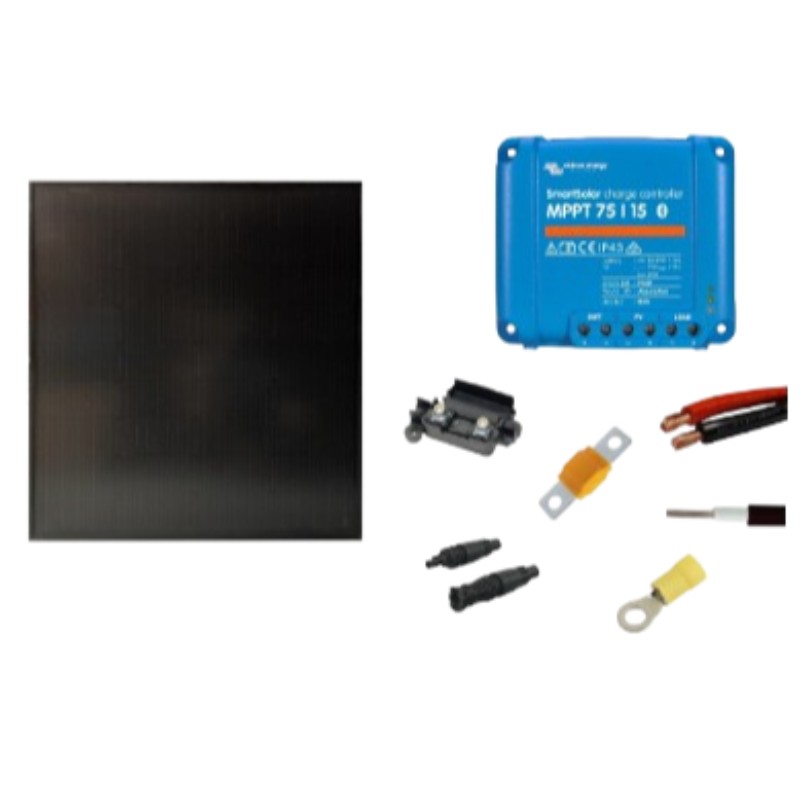

This kit contains:

Solar Panel

This unique 200W monocrystalline solar panel (1036 x 1002 mm square) can fit on any roof. It has a sturdy 35mm svelte black frame to protect some of the highest quality glass available. Good glass permits better light transmission and thus higher energy yields. The backing sheet that coats the back of the solar panel is durable and weather tight ensuring many years of performance. A resilient junction box coupled with double insulated solar cables ensures effective energy transference. The cables are fitted with the industry standard MC4 compatible connectors.

MPPT Regulator

To effectively charge your 12V battery bank you will need a solar regulator. We provide only high quality regulators from industry leaders. This kit comes with the fantastic 15A 75V Victron Energy MPPT solar charge controller. We have been a direct distributor of Victron Energy products for many years and have always been impressed with the high quality of their products.

Conversion inefficiencies exceeding 98% and high speed maximum power point tracking (MPPT) ensure little to no power whatsoever is lost from your solar system. Protection measures include battery short circuit, reverse polarity and overcharge protection as well as temperature compensation (using optional temperature sensor) to ensure batteries last as long as they should.

Connections

To connect this kit to your 12V system you will need suitable cables. We provide 2x 3m cables with MC4 Evo-Ready connectors on to enable you to connect the panel to the regulator. We also provide a suitable 2x 2m 6mm general purpose cable (1x red and 1x black) along with all the necessary connectors and fuses to connect the regulator to your battery bank.

If the cables are not long enough let us know and we will get you what you need.


Solar Panel
Peak power
200W
Vmpp
35.22V
Voc
43.68V
Impp
5.68A
Isc
5.95A
Weight
12.5kg
Dimensions
1036 x 1002 x 35mm
Product warranty
5 years
Warranty on output
90% 5 years; 80% 10 years
Electrical
Max PV Input Voltage
75V
Rated charge current
15A
Max PV power, 12V
220W
Max PV power, 24V
440W
Self-consumption
8-10mA
Weight
0.5kg
Dimensions
100 x 113 x 40mm
Product warranty
5 years
Load Terminals
Yes
Power Terminals
6mm2 / AWG10

If your looking for a suitable mounting solutions please check out our mounting page.
