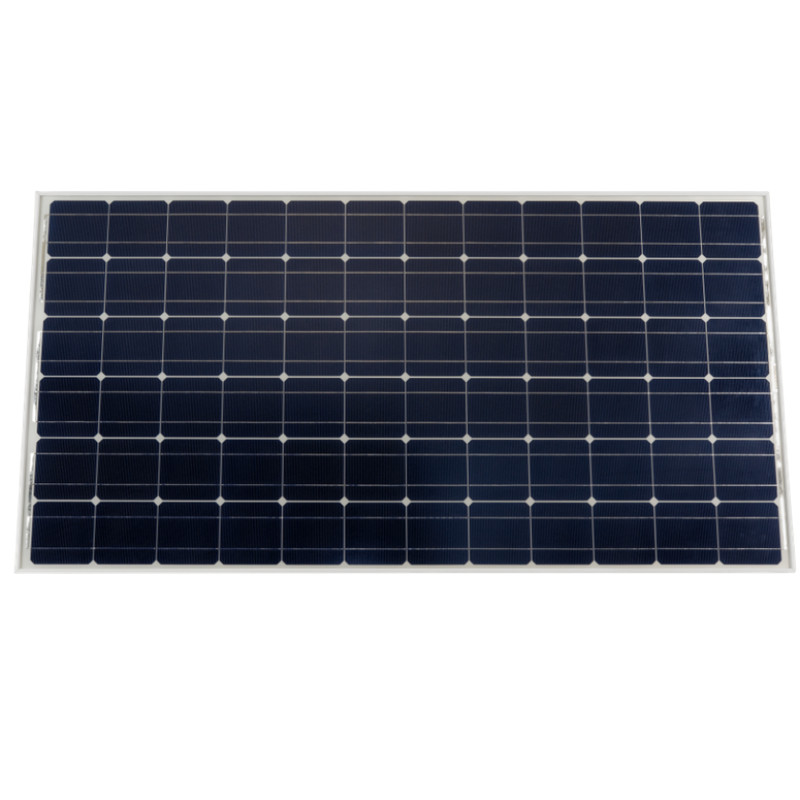

Victron Solar Panel 190W-39 cells Mono 1485x668x30mm series 4c

Mono 4C

Quantity:
Add to Cart

tell me more

We are proud to stock the new Victron range of monocrystalline solar panels, available in a range of power ratings from 20W up to 215W, manufactured to the same outstanding quality as all other Victron equipment. These panels are suitable for both domestic solar systems, portable vehicle and marine applications.

Features:

  • Low voltage-temperature coefficient enhances high-temperature operation.
  • Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
  • 25-year limited warranty on power output and performance.
  • 5-year Limited warranty on materials and workmanship.
  • Sealed, waterproof, multi-functional junction box gives high level of safety.
  • High performance bypass diodes minimize the power drop caused by shade.
  • Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
  • A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
  • Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
  • High power models with pre-wired quick-connect system with MC4 (PV-ST01) connectors.

Electrical
Peak power
190W
Vmpp
21.8V
Voc
25.5V
Impp
8.71A
Isc
9.17A
System
Weight
10.5 kg
Dimensions
1485 x 668 x 30mm
Product warranty
5 years
Performance warranty
25 years

No cable. If you require a controller with this solar panel, please take a look at our solar charge controllers.
