Victron Wiring Diagrams
In this section we have compiled several wiring diagrams intended for use as guidance for your system. You can also find links to the main components used in each of the diagrams, allowing you to quickly find what you need.
Please note these wiring diagrams are meant for guidance only. Existing or desired systems may differ.
If you are still unsure about your system, please contact us.
Simple/Vehicle System Overview
Multiplus Inverter Charger / Lynx Distributor / Pylontech Batteries
Quattro Inverter Charger / Lynx Distributor / Pylontech Batteries
Parallel Quattros with BYD
3ph Quattro Simple
Simple/Vehicle System Overview
If you are installing a system on your boat, van or motorhome, this is a great place to start.

- Solar panels - We offer a wide range of solar panels to suit your needs. You can shop by manufacturer using the links on the left of your page.
- MPPT charge controller
- Leisure battery
- Inverter charger
- Uni/bi-directional charger (DC-DC converter)
- Cables and connectors
Multiplus Inverter Charger / Lynx Distributor / Pylontech Batteries
For medium sized systems this is a good setup.
Note: We no longer stock the Pylontech batteries used in the system. Instead you can use our DBS Leoch Batteries which are set up very similarly. Please give us a call if you have any questions.
.png)
- Solar panels - We offer a wide range of solar panels to suit your needs. You can shop by manufacturer using the links on the left of your page.
- MPPT charge controller
- Lynx distributor - Found with our accessories.
- Battery
- Inverter charger
- GX device and touch screen
- Cables and connectors
Quattro Inverter Charger / Lynx Distributor / Pylontech Batteries
For larger systems and/or those that need two AC inputs.
Note: We no longer stock the Pylontech batteries used in the system. Instead you can use our DBS Leoch Batteries which are set up very similarly. Please give us a call if you have any questions.
.png)
- Solar panels - We offer a wide range of solar panels to suit your needs. You can shop by manufacturer using the links on the left of your page.
- MPPT charge controller
- Lynx distributor - Found with our accessories.
- Battery
- Quattro Inverter Charger
- GX device and touch screen
- Cables and connectors
Parallel Quattros with BYD

- MPPT charge controller
- Lynx distributor - Found with our accessories.
- Quattro Inverter Charger
- Cerbo GX and touch screen
- BYD BMU
- BYD LVL battery
- Cables and connectors

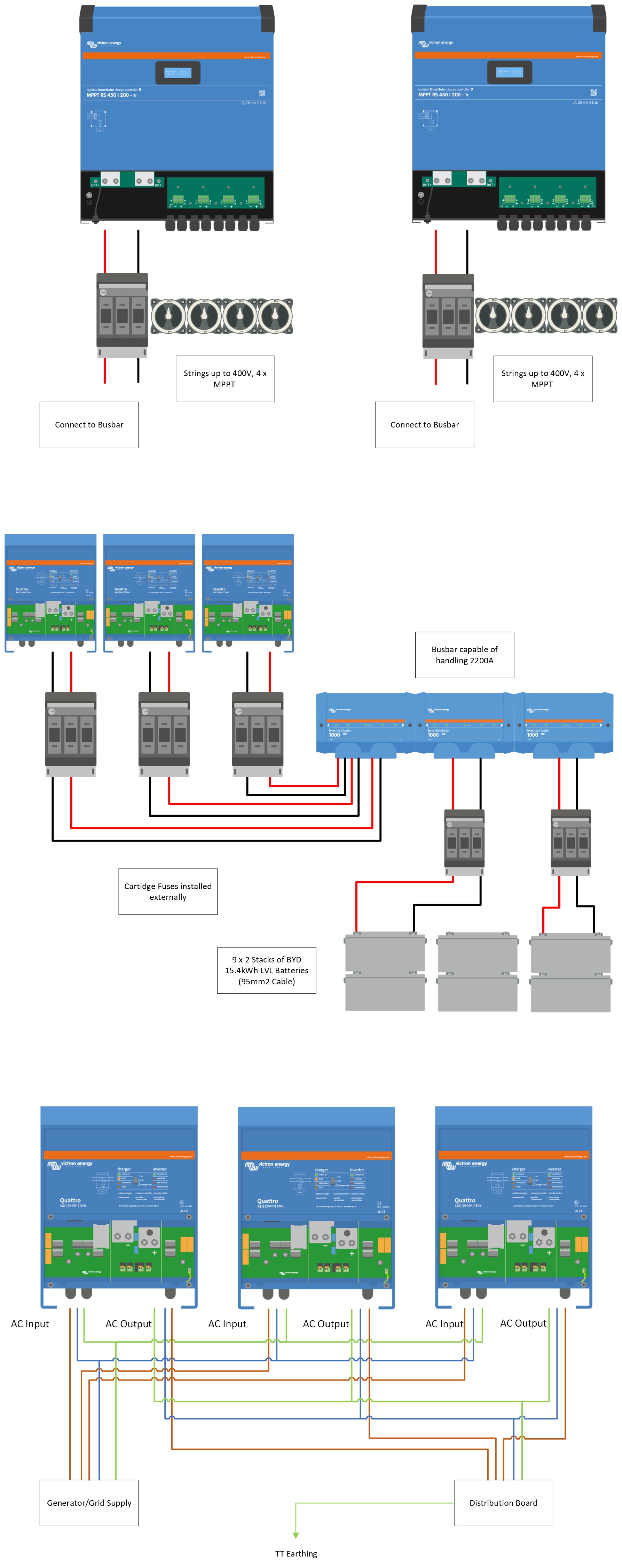

3ph Quattro Simple

- MPPT charge controller
- Lynx distributor - Found with our accessories.
- Quattro Inverter Charger
- Cerbo GX and touch screen
- BYD BMU
- BYD LVL battery
- Cables and connectors
